Verifying Freight in a Stage

Following a successful Promotion (i.e. the process succeeded), it is often desired to assert whether updated code or configuration meets expectations. Verification is an optional, user-defined process to test the Freight in a given Stage. Common examples of verification include:

• Executing containerized integration test scripts
• Querying monitoring tools (e.g. DataDog, Prometheus) and measuring application KPIs
• Performing HTTP requests to internal services or systems and interpreting responses as success/fail
• Running load generation tests

When a Stage with verification is upstream from other Stages, Freight must pass verification there before becoming eligible to be promoted downstream.

Configuring Verification

A Stage can be configured with verification by referencing one or more AnalysisTemplates in its spec.verification field. In the following example the dev Stage references an AnalysisTemplate named integration-test, which executes after any successful Promotion:

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
  name: dev
  namespace: guestbook
spec:
  # ...
  verification:
    analysisTemplates:
    - name: integration-test

In addition to referencing AnalysisTemplates, a kind field can be specified to reference ClusterAnalysisTemplates, which are cluster-scoped resources that behave similarly to AnalysisTemplates but are not namespaced:

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
  name: dev
  namespace: guestbook
spec:
  # ...
  verification:
    analysisTemplates:
      - name: integration-test
        kind: ClusterAnalysisTemplate

Configuring AnalysisTemplates

An AnalysisTemplate defines instructions for how to perform verification. It might include running a Kubernetes Job, querying monitoring tools, interpreting their result, performing HTTP requests, or any combination of these actions. AnalysisTemplates reside in the same project namespace as the Stage from which they are referenced. The following simple AnalysisTemplate example wil create a Kubernetes Job that runs an alpine container that sleeps for 10 seconds:

apiVersion: argoproj.io/v1alpha1
kind: AnalysisTemplate
metadata:
  name: integration-test
  namespace: guestbook
spec:
  metrics:
  - name: integration-test
    provider:
      job:
        spec:
          template:
            spec:
              containers:
              - name: sleep
                image: alpine:latest
                command: [sleep, "10"]
              restartPolicy: Never
          backoffLimit: 1

info

For further documentation and examples of AnalysisTemplates, refer to the AnalysisTemplate reference.

How Verification Works

After a successful Promotion, a Stage enters the Verifying phase. Any AnalysisTemplates which were referenced by the Stage are are used to spawn a resource called an AnalysisRun, which represents a single execution of those templates.

When the AnalysisRun completes and is Successful, the verification is considered successful and the Freight is marked as "verified" in that Stage, which makes it available for promotion to any immediate downstream Stages, either automatically (with auto-promotion) or manually (via the UI, API, or CLI). Freight which have not passed verification in a Stage are blocked from continuing further downstream.

tip

It is sometimes desired to skip the verification process entirely (e.g. a hotfix needs to be fast-tracked to production). Verification (and the entire Pipeline for that matter) can be bypassed by manually approving Freight for a specified Stage.

While a Stage is verifying (i.e. the AnalysisRun is not yet completed) no other Promotions to that Stage will run until verification has completed (either successfully or unsuccessfully). Once verification has completed, the next queued Promotion will run.

AnalysisRun

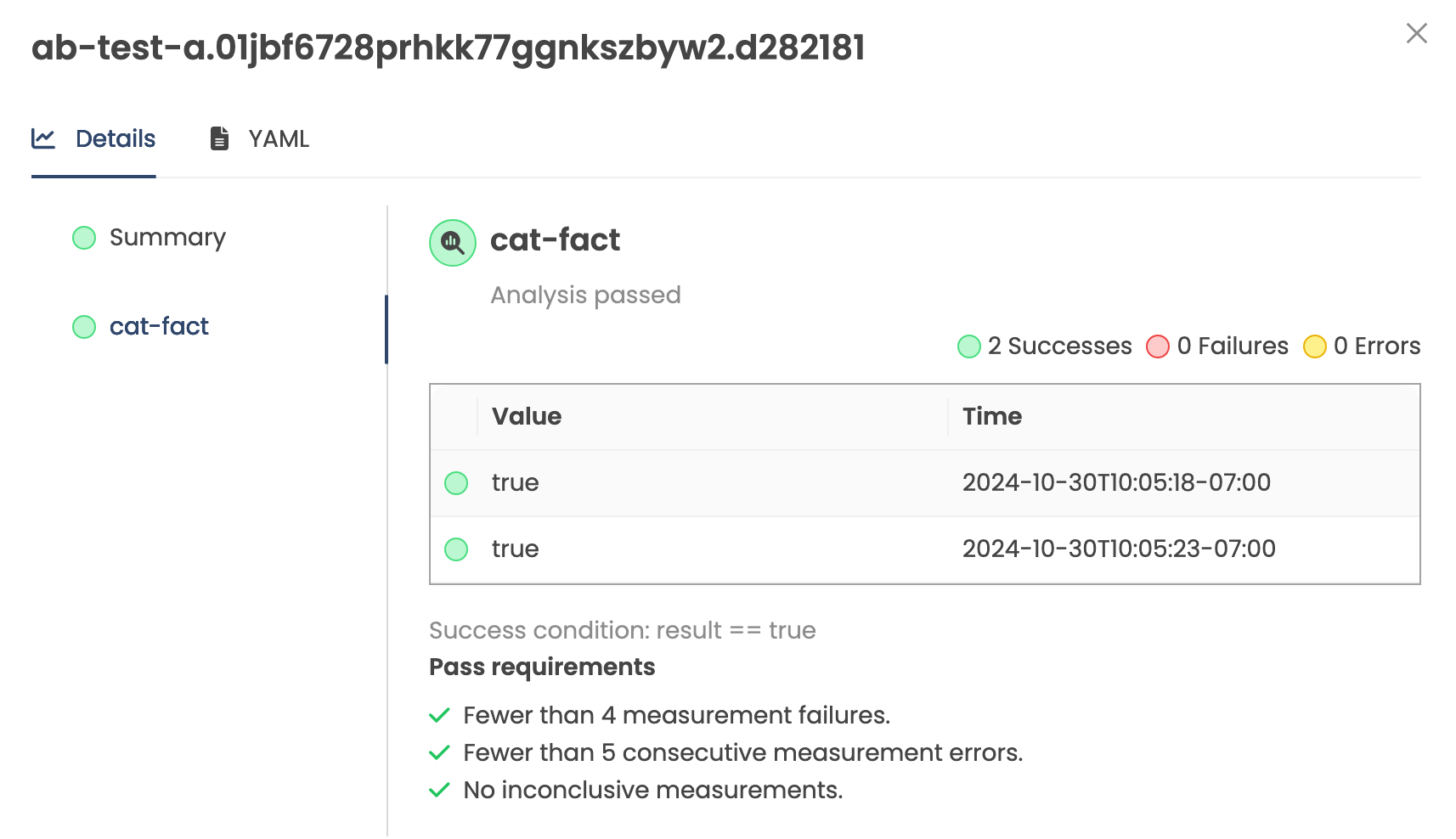

An AnalysisRun is a resource representing a verification attempt for a Freight + Stage pair. AnalysisRuns have a lifecycle (e.g. Running, Successful, Failed) and also record measurements taken during the run. AnalysisRuns appear in the Kargo UI under the Verifications tab of a Stage:

The following might be an example of an AnalysisRun spawned from the integration-test template:

apiVersion: argoproj.io/v1alpha1
kind: AnalysisRun
metadata:
  creationTimestamp: 2025-01-28T20:47:50Z
  generation: 3
  labels:
    kargo.akuity.io/freight-collection: 55d452301040a73e9fd05289b1f8ddbec1791222
    kargo.akuity.io/stage: dev
  annotations:
    kargo.akuity.io/promotion: dev.01jjpfgfwkzk18k7cyq61jehf4.319ddec
  name: dev.01jjqaq7qacfn766tcp1nqz2zv.55d4523
  namespace: guestbook
  ownerReferences:
    - apiVersion: kargo.akuity.io/v1alpha1
      blockOwnerDeletion: false
      kind: Freight
      name: 319ddec6bbfbd808d499a0357b027e773aa3707f
      uid: fb0db653-92af-420b-9092-0c7bf9be290e
  resourceVersion: "54013326"
  uid: 8cb745cb-554b-4141-80ee-e0df181cd56e
spec:
  metrics:
  - name: integration-test
    provider:
      job:
        spec:
          template:
            spec:
              containers:
              - name: sleep
                image: alpine:latest
                command: [sleep, "10"]
              restartPolicy: Never
          backoffLimit: 1
status:
  dryRunSummary: {}
  message: Metric "integration-test" assessed Failed due to failed (1) > failureLimit (0)
  metricResults:
    - count: 1
      failed: 1
      measurements:
        - finishedAt: 2025-01-28T20:50:31Z
          metadata:
            job-name: 8cb745cb-554b-4141-80ee-e0df181cd56e.integration-test.1
            job-namespace: guestbook
          phase: Failed
          startedAt: 2025-01-28T20:47:50Z
      name: integration-test
      phase: Failed
  phase: Failed
  runSummary:
    count: 1
    failed: 1
  startedAt: 2025-01-28T20:47:50Z

note

AnalysisTemplate vs AnalysisRun

An AnalysisTemplate defines a verification process, while an AnalysisRun tracks the progress and result of an execution of that process.

Arguments and Metadata

It is also possible to specify additional labels, annotations, and arguments that should be applied to AnalysisRun resources spawned from the referenced AnalysisTemplate:

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
  name: test
  namespace: kargo-demo
spec:
  # ...
  verification:
    analysisTemplates:
    - name: kargo-demo
    analysisRunMetadata:
      labels:
        foo: bar
      annotations:
        bat: baz
    args:
    - name: foo
      value: bar

The values specified in args support expressions to dynamically set values based on the context of the Freight being verified.

For example, the following defines an argument commit with a value set to the commit hash that is being verified using the commitFrom expression function:

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
  name: test
  namespace: kargo-demo
spec:
  # ...
  verification:
    analysisTemplates:
      - name: kargo-demo
    args:
      - name: commit
        value: ${{ commitFrom("https://github.com/example/repo.git").ID }}

caution

Kargo promotion processes require expressions to be enclosed within ${{ }}, Argo Rollouts AnalysisTemplates require expressions to be enclosed within {{ }} (i.e. without $).

Ensure that expressions are enclosed within the correct syntax for the type of resource you are working with, recognizable by the apiVersion and kind fields.

Implicit Argo CD Verification

It is usually desirable for changes to be fully rolled out before performing any verification. For example, it would be premature to start running tests if a Deployment's Pods were still starting or not fully transitioned to the desired version. Promotions that integrate with Argo CD do wait for any sync operations they initiate to complete, but it is possible for an Argo CD Application to still be Progressing even after sync operations have completed and the Promotion process is considered complete.

In order to prevent verification from starting before Applications are ready, Kargo has a built-in understanding of Argo CD Application health and will delay verification until Applications have reached a Healthy state.

note

If a Stage references one or more Argo CD Applications as part of its promotion process, but does not explicitly define any verification process, successful verification is implicitly contingent on the Applications reaching a Healthy state.

Soak Times

In some scenarios, automated testing may be unavailable or insufficient to ensure confidence before promoting software to critical environments. To mitigate this, users often resort to letting the release run in a lower environment for a period of time, monitoring its behavior and stability before proceeding with promotion. This practice is commonly known as "soaking" or "baking" the release before it reaches production.

Stages may optionally specify a "soak time" when requesting Freight from upstream Stages. To configure this, a duration can be specified using the spec.requestedFreight[].requiredSoakTime field. Valid durations are expressed in seconds, minutes or hours (e.g. 180s, 30m, 48h). This duration is the minimum duration (following a successful promotion), for which the requested Freight must have continuously occupied ("soaked in") in an upstream Stage before becoming available for promotion to this Stage. Both automated and manual promotions are blocked until the soak time requirement is met.

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
  name: prod
  namespace: guestbook
spec:
  requestedFreight:
  - origin:
      kind: Warehouse
      name: guestbook
    sources:
      stages:
      - uat
    requiredSoakTime: 1h
 # Omitted for brevity...

note

Soak time is not technically a verification feature, but is documented alongside it because both relate to preventing Freight from moving downstream until required conditions have been met. These two features may even be used in conjunction with one another.

info

Manually approving Freight for a Stage makes it immediately available to that Stage regardless of whether any required soak time has elapsed.
